Nashik, Maharashtra
- GST NO. : 27ABRPB9873C1ZC
Twitter1 Piece (MOQ)
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Condition
New
Application
Industrial
Size
83 mm X 90 mm X 60 mm
Voltage
24 V DC
Type
Relay Modules
Warranty
1Year
Country of Origin
India
Number of Poles
1
Rating of Contacts
10 A at 30V DC and 250V AC for resisitive load
Coil Resistance
1440 Ohms + 10%
Relay Socket
5 A, 250 V AC
Input Current/ Channel
17 mA Per Channel
Mechanical Dimensions
83 mm X 90 mm X 60 mm
Terminals
Screw Type
Conductor Size
0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer
Omron
Contact Type
1 Change Over
Packaging Details
In corrugated box with bubblesheet
Description
- Din Rail Mounting.
- Solderable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.

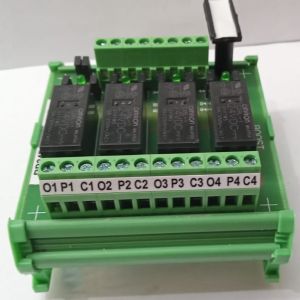

Looking for "Relay Interfacing Module RP24D04-1CO-M/P" ?
