- GST No. 27ABRPB9873C1ZC
50 Piece (MOQ)
| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Voltage | 24 Volt DC |
| Size | 172 Mm X 90 Mm X 68 Mm |
| Click to view more | |
Product Details
Application
In Automation Industries
Condition
New
Design
Standard
Color
Green
Brand Name
Boost
No of Relay Channel
8
Rating of Contacts
2 Amp at 30 V DC & 125 V AC
Relay Socket
NA
Input Current/ Channel
8 mA @ 24 V DC
PCB Dimension
170 mm X 72 mm.
Relay Make / Manufacturer
OEN
Material
FR4, Glass Epoxy
Conductor Size
0.25 to 2.5 sq.mm flexible
Contact Type
2 Change Over
Terminals
Screw type
Relay Type
46-24-2CE
Coil Resistance
2,880 Ohms +/-10%
Port
By courier
Delivery Time
7-8 Days
Packaging Details
In corrugated box with bubble sheet.
Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. |
1,00,000 Electrical operations minimum. |

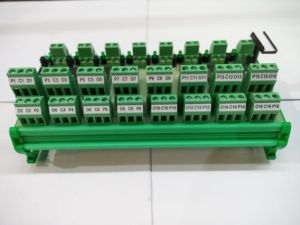

Looking for "Relay Module RP24D08-2CO-OEN/P" ?
