| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Material | FR4 |
| Current Type | DC |
| Click to view more | |
Product Details
Shape
Rectangular
Color
Green
Condition
New
Application
Industrial
Size
83 mm X 90 mm X 66 mm
Certification
CE Certified, ISI Certified
Feature
Accuracy, Durable, Heat Resistance, High Performance, Shocked Proof, Stable Performance
Voltage
24 VDC,24 V DC
Packaging Type
In corrufated box with bubble sheet

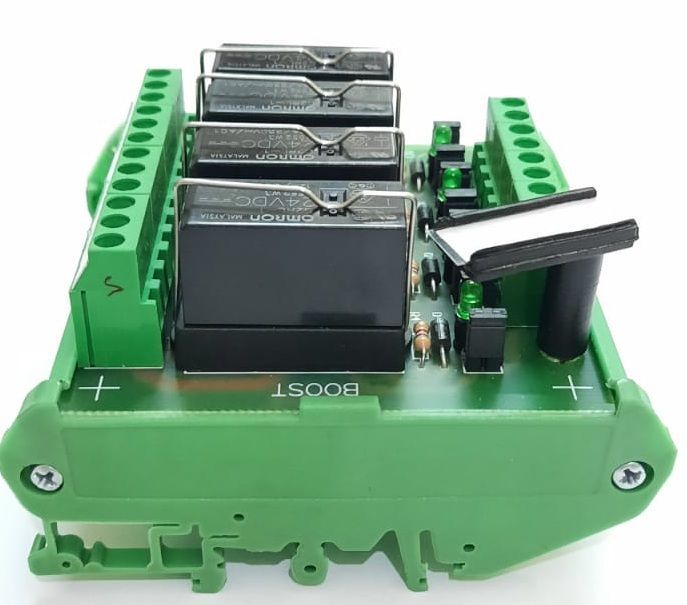

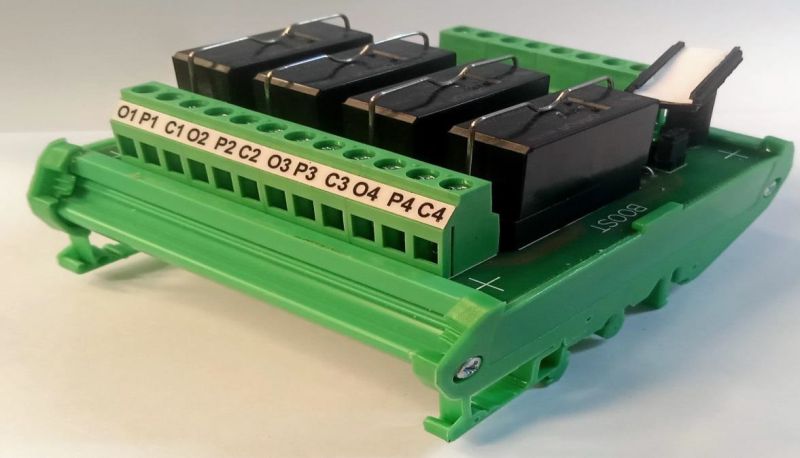

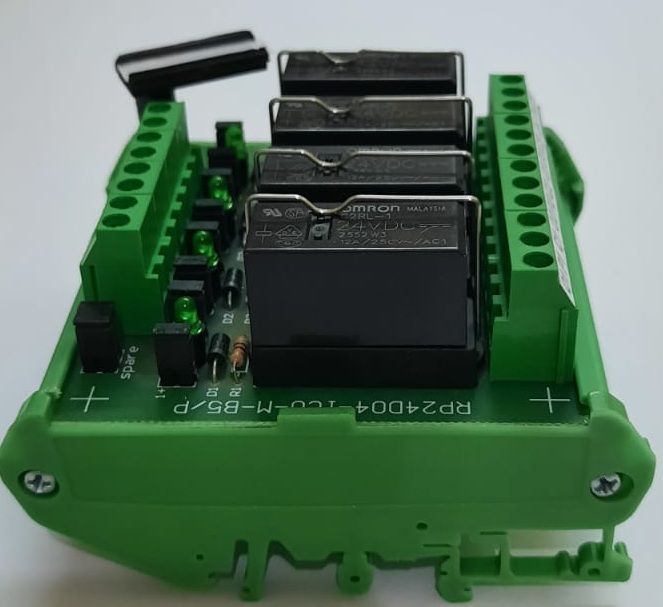

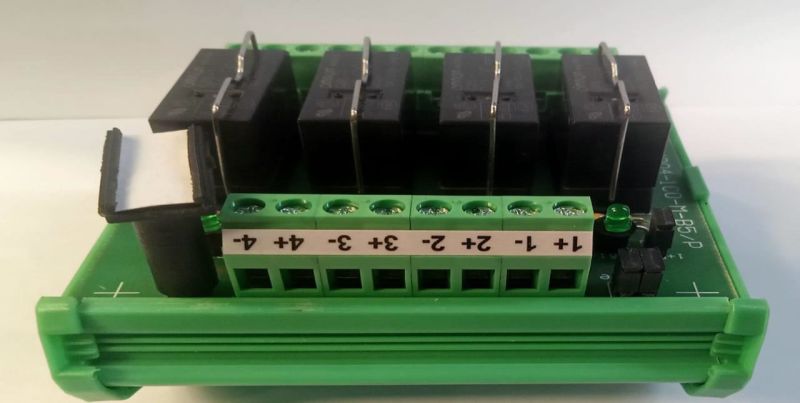

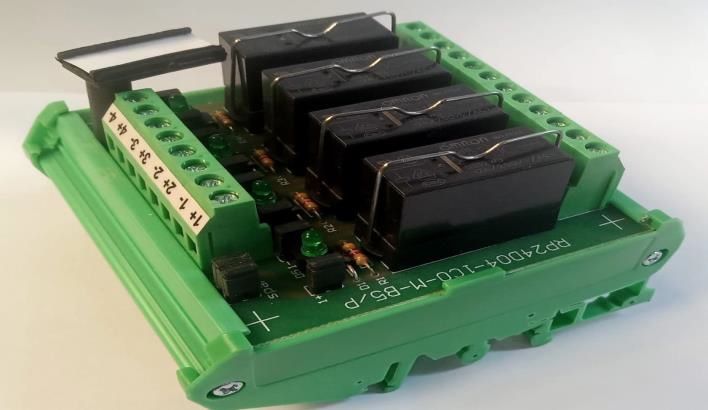

Type
Relay Card
Frequency
50Hz, 60Hz
Channels
4
Warranty
1Year
Country of Origin
India
Temperature
0 to 50 degree Celsius
No of Relay Channel
04
Rating of Contacts
10 A at 30V DC and 250V AC
Coil Resistance
1,440 Ohms + 10%.
Relay Socket
5 A, 250 V AC
Input Current/ Channel
17 mA per channel
Contact Type
1 Change Over
Relay Make / Manufacturer
OMRON
Product Code
RP24D04-1CO-M-B5/P
Delivery Time
1 week
Packaging Details
In corrugated box with bubble sheet
Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. |
30,000 Electrical operations minimum. |
