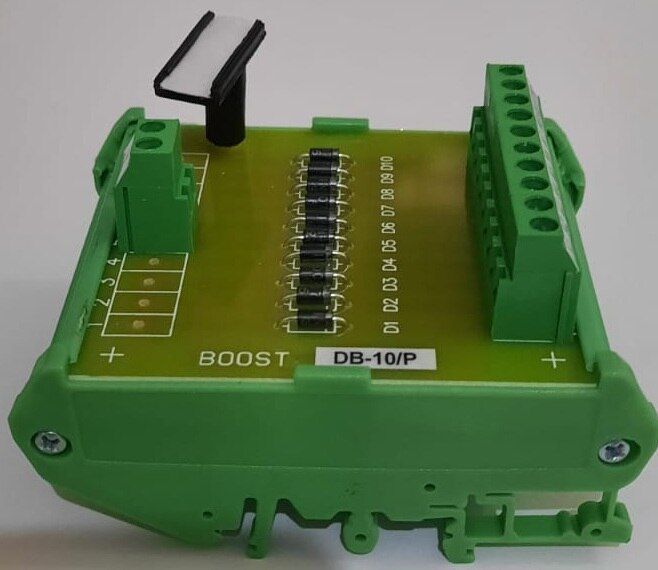

Diode Board

Link Copied
Business Type Manufacturer, Supplier
Material Glass Epoxy
Item No DB-10-P
Type of Diode 1N 5399, Make- MIC or Equivalent.
Click to view more

Product Details

Maximum Current
1.5 Ampere.
PIV Rating
1000V
No. of Channel
Ten
Termination’s
All Terminals are Screw Type & Suitable for 2.5 Sq. Mm. Cable Wire
PCB Tracks
70 Micron X 1.5mm
Connectors
Phoenix Make Pcb Connector. Type: Mkds 3 or Equivalent
Marking

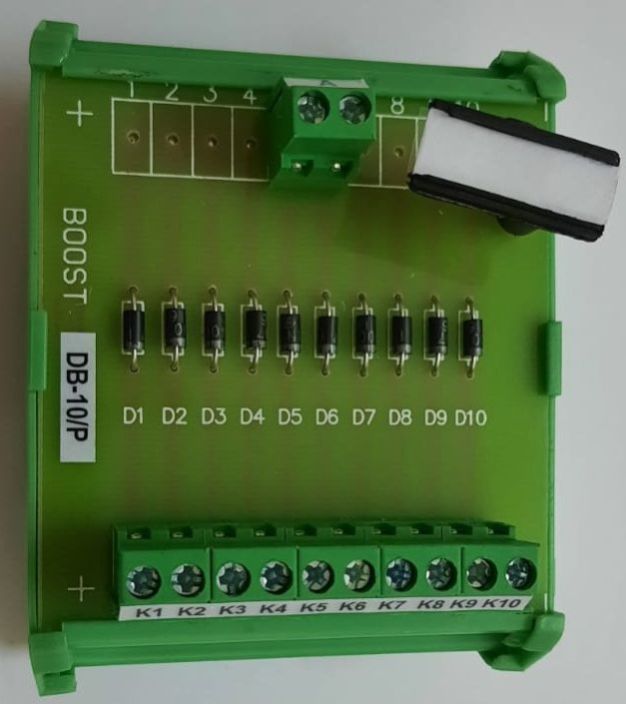

The Diode terminals are brought to the PCB mountable terminals marked serially As A1 to A10 & K1 to
Designation
Designation Plate Screwed to the Pcb for Labeling Purpose
Packing
Each Diode Board Should Be Individually Packed to Avoid Transit Damages
Testing
Visual Inspection Test - 100 % Dimensional Check - 100 % Terminal Numbering - 100 %
Mount Type
Din Rail
Brand Name
Boost
