Industrial Module

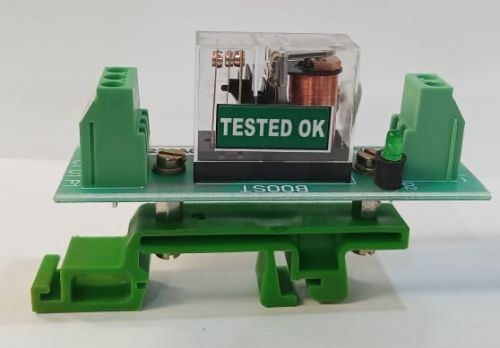

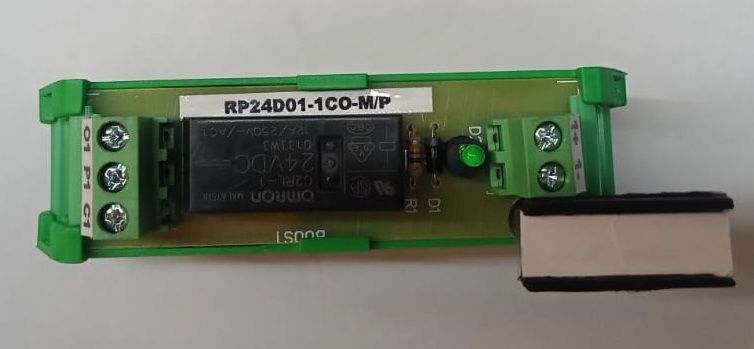

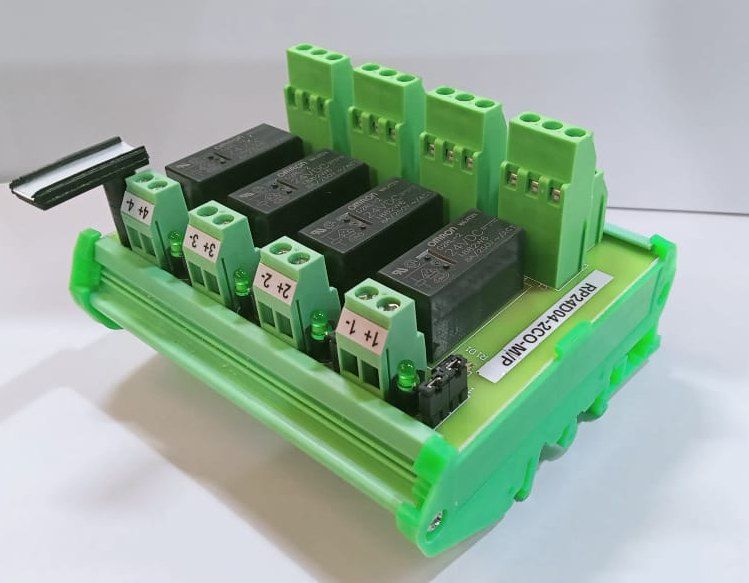

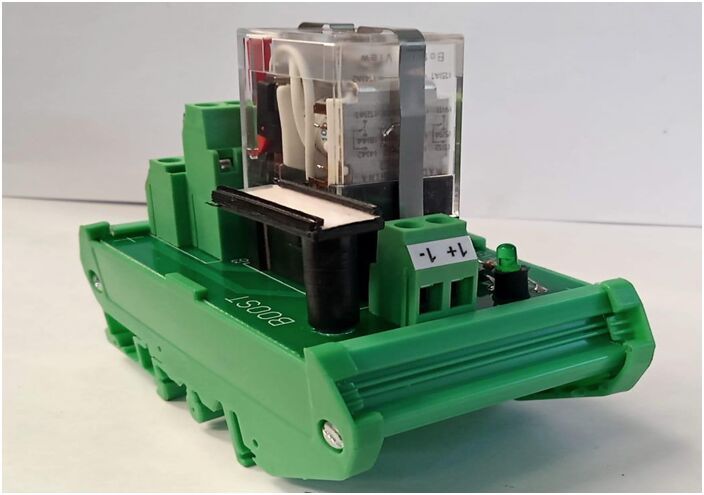

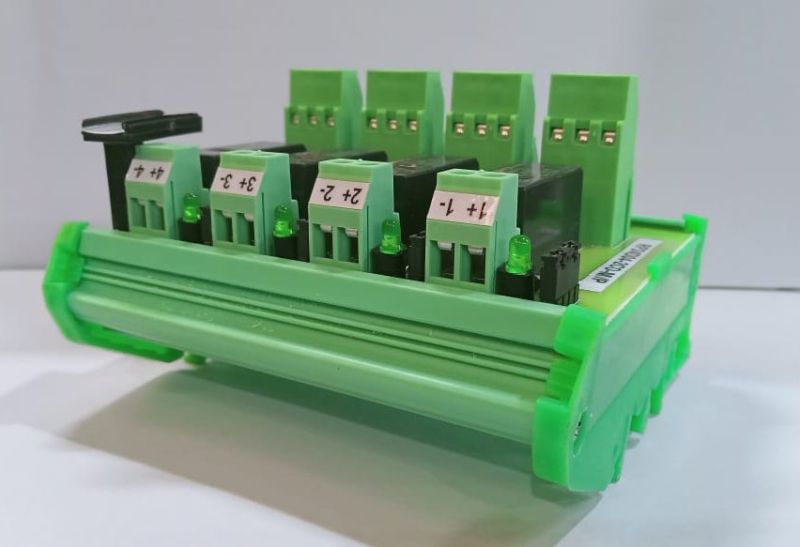

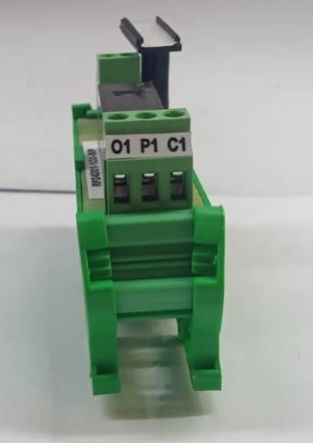

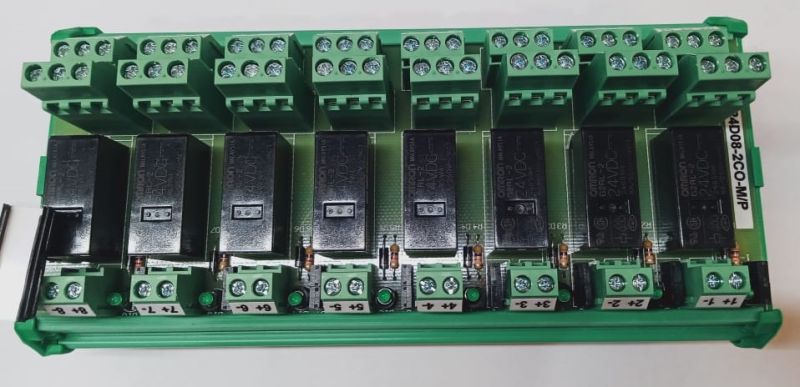

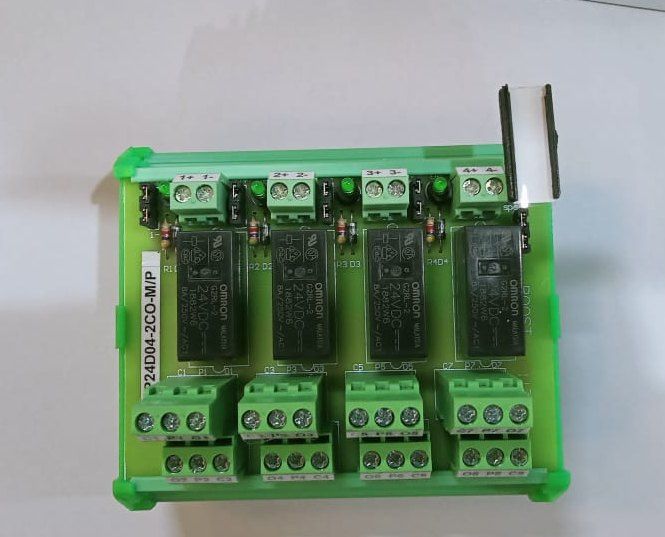

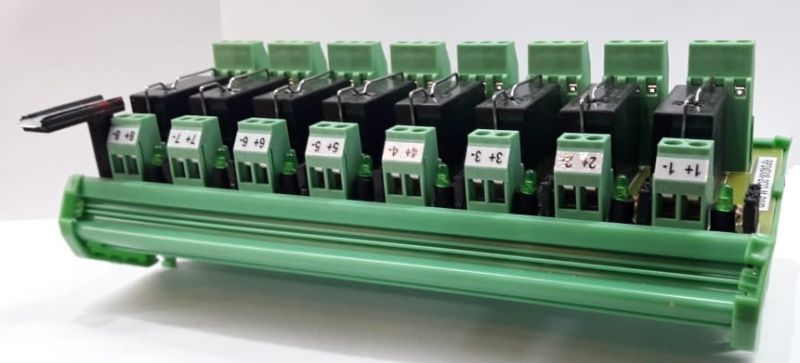

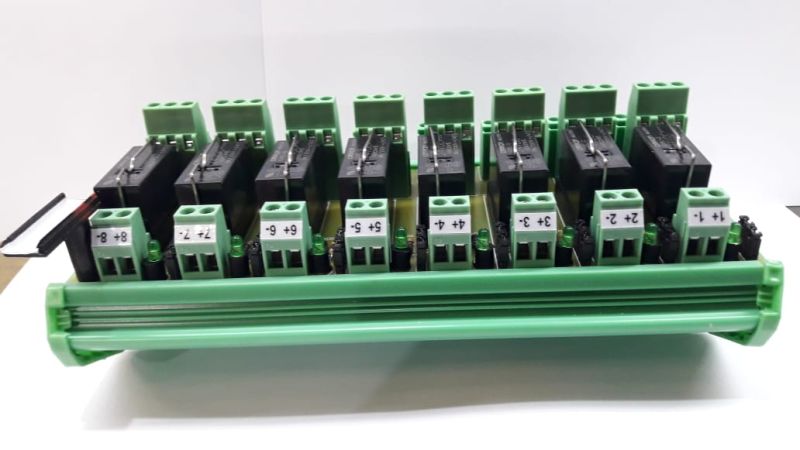

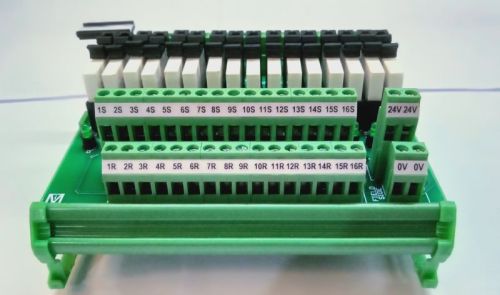

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Relay Interfacing Modules, Diode Modules, 16 Channel DI Interface Slim Relay Module, DO Module, Field Interface Module and FIM Cum Relay Interfacing Module from Nashik.

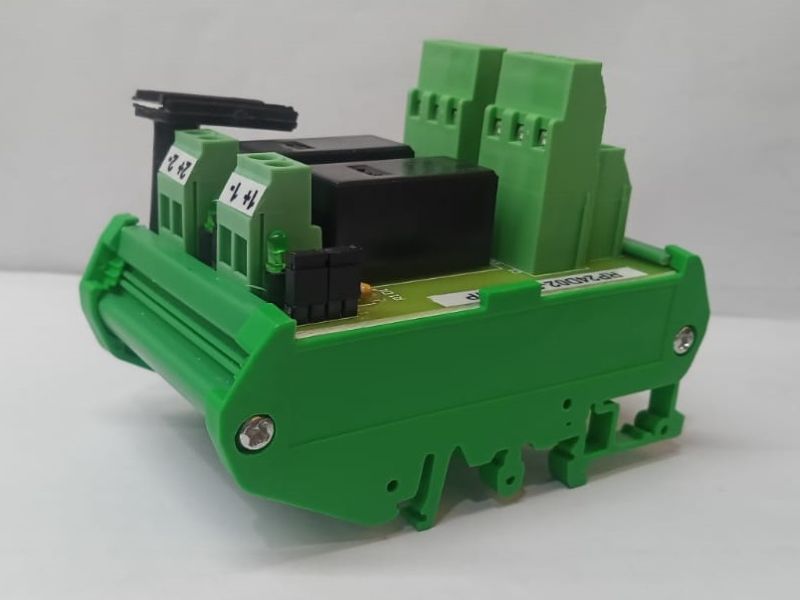

| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Certification | CE Certified, ISI Certified |
| Voltage | 24 V DC |
| Type | Relay Modules |
| Warranty | 1Year |
| Country of Origin | India |
| Contact Type | 2 Change Over |
| Relay Type | G2R-2, Electro-mechanical |
| Relay Make / Manufacturer | OMRON |
| Conductor Size | 0.25 -2.5 Sq.mm Flexible |
| Terminals | Screw Type |
| Mechanical Dimensions | 55 mm X 90 mm X 66 mm |
| Rating of Contacts | 8 A at 30V DC and 250V AC for resistive load |
| Input Current/ Channel | 17 mA per channel |
| Relay Socket | 5 A, 250 V AC |
| Coil Resistance | 1,440 Ohms + 10%. |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubble sheet |
Preferred Buyer From
| Location | Worldwide |
Description
- Din Rail Mounting.
- Pluggable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.
| Business Type | Manufacturer, Supplier |
| Condition | New |
| Type No | DM-R-10A-200 |
| PIV | 2000 |
| Current | 10 Amps |
| Product Material | PVC, PCB- Glass Epoxy,FR4 |
| Usage/Application | Industrial, Electric Field |
| Brand Name | Boost |
Preferred Buyer From
| Location | Worldwide |
We provide comprehensive range of diode modules which are extensively used in Control Panels, PLC panels, Drive Panels, CNC Machines and other allied areas. These are manufactured in accordance with requisite specifications and can be modified in compliance with client necessity.

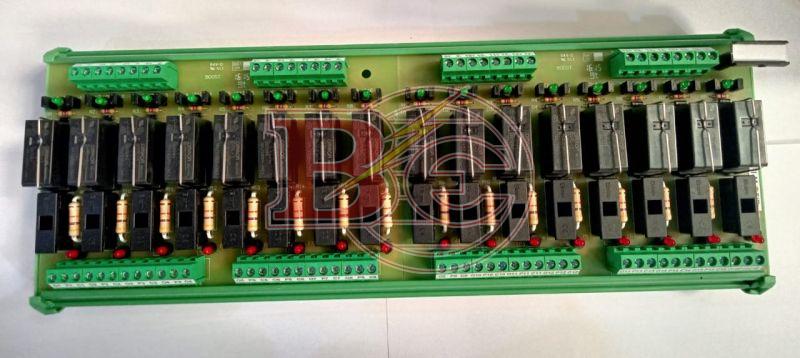

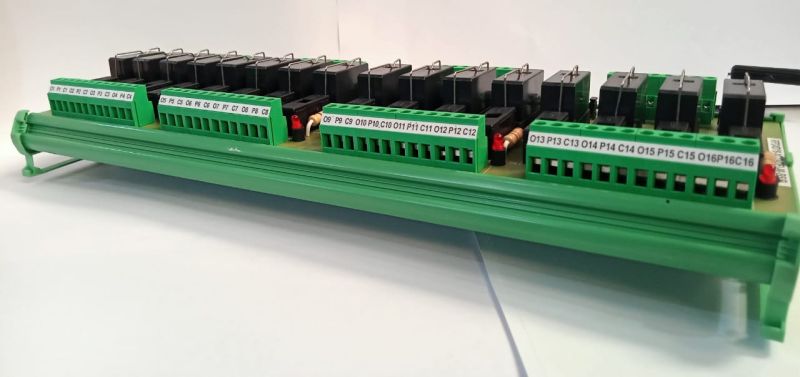

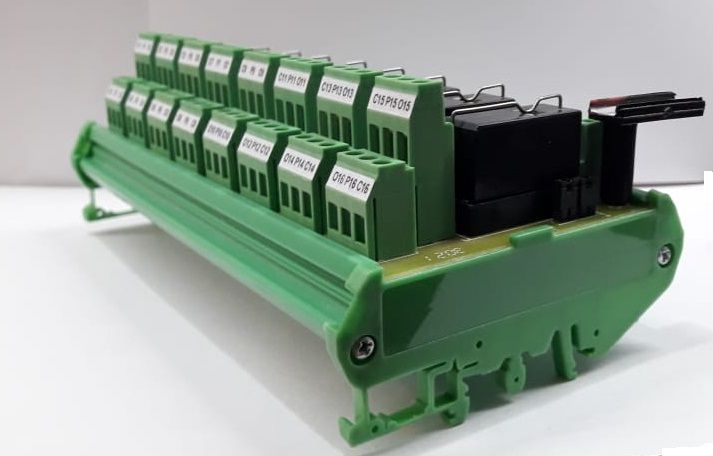

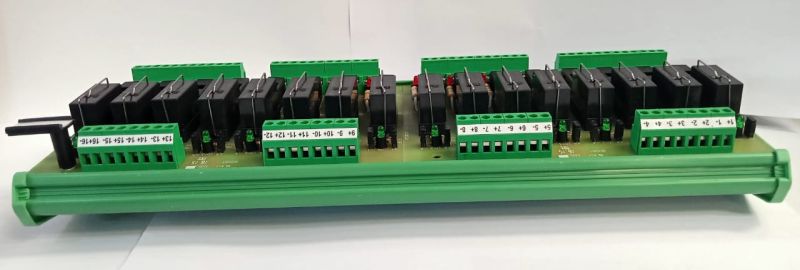

| Business Type | Manufacturer, Supplier |
| Type No. | RP24D16DI-1NO-B5/P-SLM |
| Operating Temperature | 0 to 60 Degree Celsius |
| Storage Temperature | -10 to 60 Degree Celsius |
| Relative Humidity | 5 to 90% RH |
| Relay ON Indication | Green Color LED |
| Relay Protection Method | Freewheeling Diode |
| Designation | Designation Plate Screwed to the Pcbfor Labeling Purpose. |
| Mechanical Dimensions | 134 mm X 126 mm X 70 mm |
| Input Current/ Channel | 7 mA |
| Relay Socket | 6 A, 250 Volt AC |
| Coil Voltage | 24 V DC |
| Coil Resistance | 3,390 Ohms +/-10% |
| Rating of Contacts | 6 A at 230 Volt AC |
| No of Relay Channel | 16 |
| Brand Name | Boost |
Preferred Buyer From
| Location | Worldwide |
Details:
- Din Rail Mounting
- Pluggable Relay
- 10,000,000 Mechanical operations minimum
- 60,000 Electrical operations minimum.

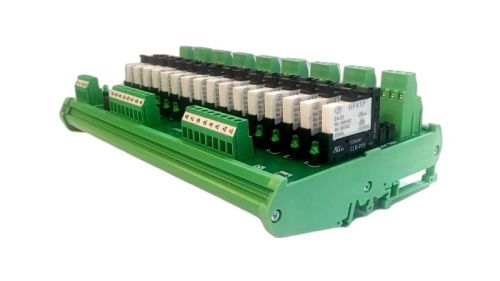

| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Application | Industrial |
| Certification | ISO 9001:2008, CE Certified |
| Voltage | 24 VDC,24 V DC |
| Warranty | 1year |
| Country of Origin | India |
| Operating Temperature | 0 to 60 Degree Celsius |
| Storage Temperature | -10 to 60 degree Celsius |
| Relative Humidity | 5 to 90% RH |
| Relay ON Indication | Green Color LED |
| Relay Protection Method | Freewheeling Diode |
| Designation | Designation Plate Screwed to the Pcb for Labeling Purpose |
| Input Current/ Channel | 7 mA |
| Relay Socket | 6 A, 250 Volt AC |
| Coil Resistance | 3,390 Ohms +/-10% |
| Rating of Contacts | 6 A at 230 Volt AC |
| No of Relay Channel | 16 |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubblesheet |
Preferred Buyer From
| Location | Worldwide |
Details:
- Din Rail Mounting
- Pluggable Relay
- 10,000,000 Mechanical operations minimum
- 60,000 Electrical operations minimum.
| Business Type | Manufacturer, Supplier |
| Color | Green |
| Country of Origin | Made in India |
| Mounting | Din Rail |
| Frequency | 50 Hz |
| Material | FR4, Glass Epoxy |
| Usage/Application | Industrial |
| Brand Name | Boost |
Preferred Buyer From
| Location | Worldwide |
PCB assembly suitable for DIN Rail mounting comprising of:
INTERFACE TO FIELD SIDE THROUGH:
40 no’s. of screw terminals with terminal markers 1 to 40.
INTERFACE TO CABLE SIDE THROUGH:
1 no. of 40 pin male FRC connector,
Type – 40 PIN STRAIGHT CONN. : OEN
Designation plate screwed to the PCB for labeling purpose.

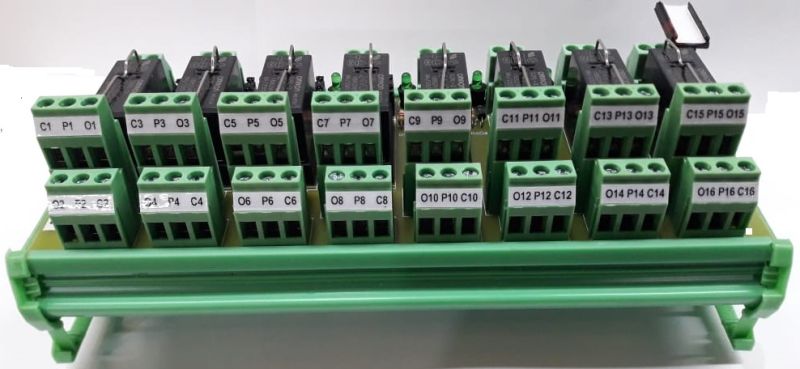

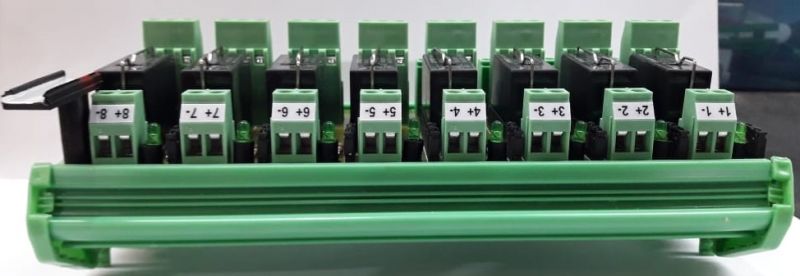

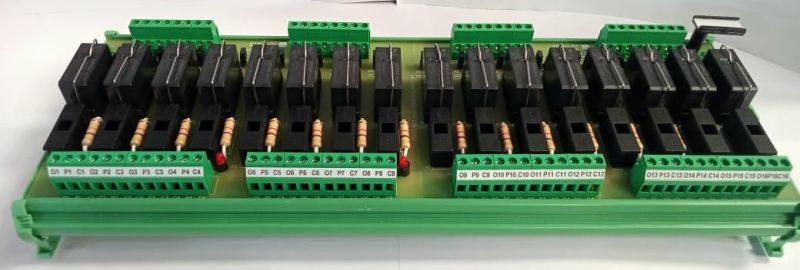

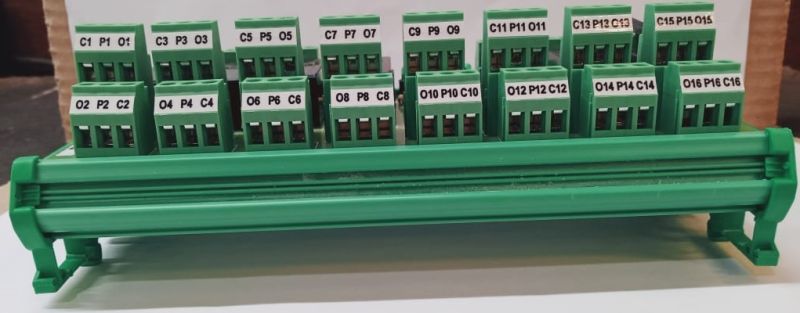

| Business Type | Manufacturer, Supplier |
| Color | Green |
| Product Type | Fim Cum Relay Module |
| Part No. | BE24I-16CO-OF-M-B5-P |
| Contact Configuration | 16 C/O |
| PCB Material | FR4, Glass Epoxy |
| Number Of Channels | 16 |
| Model Name/Number | BE-24I-16CO-OF-M-B5-S |
| Brand Name | Boost |
| Packaging Details | Corrugated Box |
