Relay Interface Modules

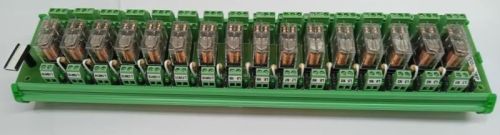

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Relay Interfacing Module RP110A16-2CO-M-B8/P, Relay Interfacing Module RP230A01-1CO-M, Relay Interfacing Module RP230A01-2CO-M, Relay Interfacing Module RP24D01-1CO-M, Relay Interfacing Module RP24D02-1CO-M-B5/P, Relay Interfacing Module RP24D02-1CO-M/P, Relay Interfacing Module RP24D02-2CO-M-B8-P, Relay Interfacing Module RP24D02-2CO-M-B8/P, Relay Interfacing Module RP24D04-1CO-M/P and Relay Interfacing Module RP24D04-1NO-U-B5/P (USSR) from Nashik.

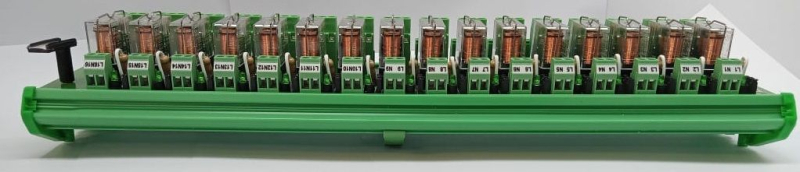

| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Voltage | 110 V AC |
| Current | 24 mA |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -10 to 60 degree Celsius |
| Relative Humidity | 5 to 85% RH |
| Relay ON Indication | Green Color LED |
| Designation | Designation Plate Screwed to the Pcb for Labeling Purpose |
| No of Relay Channel | 16 Channel |
| Rating of Contacts | 5A at 30V DC and 250V AC for resistive load. |
| Coil Resistance | 4600 Ohms + 10%. |
| Relay Socket | 5 A, 250 V AC |
| Input Current/ Channel | 24 mA per channel |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubble sheet |
Description
- Din Rail Mounting.
- Pluggable Relay.
- 10,000,000 Mechanical operations minimum.
- 100,000 Electrical operations minimum.

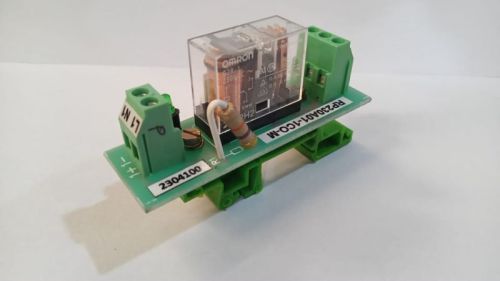

| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Size | 24 mm X 78 mm X 53 mm |
| Voltage | 230 V AC |
| Warranty | 1Year |
| Country of Origin | India |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -10 to 60 Degree Celsius |
| Relative Humidity | 5 to 85% RH |
| Relay On Indication | Green Color LED |
| Designation | Designation Plate Screwed to the Pcb for Labeling Purpose |
| No of Relay Channel | 1 Channel |
| Rating of Contacts | 10A at 30V DC and 250V AC for resistive load. |
| Coil Resistance | 26,850 Ohms + 10%. |
| Input Current/ Channel | 9 mA per channel |
| Mechanical Dimensions | 24 mm X 78 mm X 53 mm |
| Delivery Time | 1 week |
| Packaging Details | In Corrugated box with bubble sheet |
Description
- Din Rail Mounting.
- Solderable Relay.
- 10,000,000 Mechanical operations minimum.
- 100,000 Electrical operations minimum.

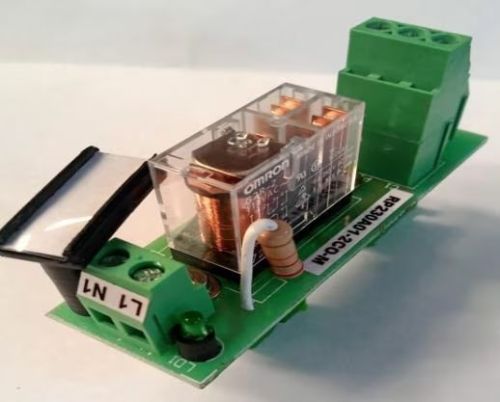

| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Size | 33 mm X 78 mm X 66 mm |
| Voltage | 230 V AC |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -10 to 60 degree Celsius |
| Relative Humidity | 5 to 85% RH |
| Relay ON Indication | Green Color LED |
| Designation | Designation plate screwed to the PCB for labeling purpose |
| No of Relay Channel | 1 Channel |
| Rating of Contacts | 5A at 30V DC and 250V AC for resistive load |
| Coil Resistance | 20.20 K Ohms + 10%. |
| Input Current/ Channel | 12 mA per channel |
| Mechanical Dimensions | 33 mm X 78 mm X 66 mm |
| Packaging Details | In corrugated box with bubble sheet |
Description
- Din Rail Mounting.
- Solderable Relay.
- 10,000,000 Mechanical operations minimum.
- 100,000 Electrical operations minimum.

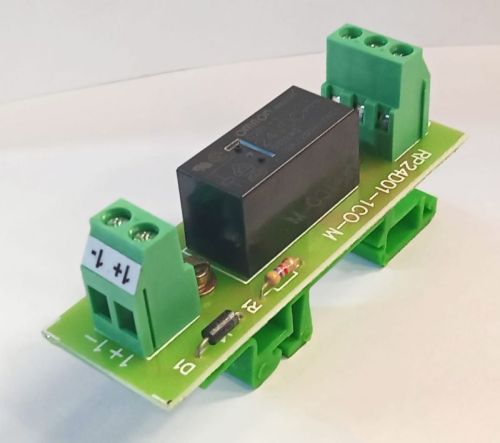

| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Size | 24 mm X 72 mm X 60 mm |
| Certification | CE Certified, ISI Certified |
| Voltage | 24 V DC |
| Type | Relay Modules |
| Rating of Contacts | 10 A at 30V DC and 250V AC for resisitive load |
| Coil Resistance | 1440 Ohms + 10% |
| Relay Socket | NA |
| Input Current/ Channel | 17 mA per channel |
| Mechanical Dimensions | 24 mm X 72 mm X 60 mm |
| Terminals | Screw Type |
| Conductor Size | 0.25 -2.5 sq.mm flexible |
| Relay Make / Manufacturer | Omron |
| Contact Type | 1 Change Over |
| Product Code | RP24D02-1CO-M/P |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubble sheet |
Description
- Din Rail Mounting.
- Solderable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Size | 55 mm X 90 mm X 66 mm |
| Certification | CE Certified, ISI Certified |
| Voltage | 24 V DC |
| Type | Relay Modules |
| Warranty | 1Year |
| Country of Origin | India |
| Contact Type | 1 Change Over |
| Relay Type | G2RL-1, Electro-mechanical |
| Relay Make / Manufacturer | OMRON |
| Conductor Size | 0.25 -2.5 Sq.mm Flexible |
| Terminals | Screw Type |
| Mechanical Dimensions | 55 mm X 90 mm X 66 mm |
| Input Current/ Channel | 17 mA per channel |
| Relay Socket | 5 A, 250 V AC |
| Coil Resistance | 1,440 Ohms + 10%. |
| Rating of Contacts | 10 A at 24V DC and 250V AC For resistive load |
| Packaging Details | In corrugated box with bubble sheet |
Description
- Din Rail Mounting.
- Pluggable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Certification | CE Certified, ISI Certified |
| Voltage | 24 V DC |
| Type | Relay Modules |
| Theory | RP24D02-1CO-M/P |
| Warranty | 1Year |
| Country of Origin | India |
| Number of Poles | 1 |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -10 to 60 degree Celsius |
| Relative Humidity | 5 to 85% RH |
| Relay ON Indication | Green Color LED |
| Relay Protection Method | Freewheeling Diode |
| Designation | Designation plate screwed to the PCB for labeling purpose |
| No of Relay Channel | 2 Channel |
| Rating of Contacts | 10 A at 30V DC and 250V AC for resistive load |
| Coil Resistance | 1,440 Ohms +/- 10%. |
| Relay Socket | 5 A, 250 V AC |
| Input Current/ Channel | 17 mA per channel |
| PCB Dimension | 52 mm X 72 mm |
| Mechanical Dimension | 55 mm X 90 mm X 66 mm |
| Terminals | Screw Type |
| Conductor Size | 0.25 -2.5 sq.mm flexible |
| Relay Make / Manufacturer | OMRON |
| Relay Type | G2RL-1, Electro-mechanical |
| Contact Type | 1 Change Over |
| Type No | RP24D02-1CO-M/P |
| Product Code | RP24D02-1CO-M/P |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubblesheet |
Description
- Din Rail Mounting.
- Solderable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Certification | CE Certified, ISI Certified |
| Voltage | 24 V DC |
| Type | Relay Modules |
| Warranty | 1Year |
| Country of Origin | India |
| Contact Type | 2 Change Over |
| Relay Type | G2R-2, Electro-mechanical |
| Relay Make / Manufacturer | OMRON |
| Conductor Size | 0.25 -2.5 Sq.mm Flexible |
| Terminals | Screw Type |
| Mechanical Dimensions | 55 mm X 90 mm X 66 mm |
| Rating of Contacts | 8 A at 30V DC and 250V AC for resistive load |
| Input Current/ Channel | 17 mA per channel |
| Relay Socket | 5 A, 250 V AC |
| Coil Resistance | 1,440 Ohms + 10%. |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubble sheet |
Description
- Din Rail Mounting.
- Pluggable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Voltage | 24 Volt |
| Warranty | 1Year |
| Country of Origin | India |
| Number of Poles | 2 |
| Model Name/Number | RP24D02-2CO-M-B8/P (MY2) |
| Product Name | Relay Module |
| Operating Temperature | 0 to 50 Degree Celsius. |
| Storage Temperature | 10 to 60 Degree Celsius. |
| Relative Humidity | 5 to 85% RH. |
| Relay ON Indication | Green color LED. |
| Relay Protection Method | Freewheeling Diode |
| Designation | Designation Plate Screwed to the Pcb for Labeling Purpose |
| Rating of Contacts | 5 Amp At 24 V Dc & 230 V Ac for Resistie Load. |
| Coil Resistance | 662 Ohms. |
| Conductor Size | 0.25 to 2.5 Sq.mm Flexible. |
| Relay Make / Manufacturer | OMRON |
| Material | PCB- FR4, Glass Epoxy |
| Relay Type | MY2, Electro-mechanical |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubblesheet |
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Size | 83 mm X 90 mm X 60 mm |
| Voltage | 24 V DC |
| Type | Relay Modules |
| Warranty | 1Year |
| Country of Origin | India |
| Number of Poles | 1 |
| Rating of Contacts | 10 A at 30V DC and 250V AC for resisitive load |
| Coil Resistance | 1440 Ohms + 10% |
| Relay Socket | 5 A, 250 V AC |
| Input Current/ Channel | 17 mA Per Channel |
| Mechanical Dimensions | 83 mm X 90 mm X 60 mm |
| Terminals | Screw Type |
| Conductor Size | 0.25 -2.5 sq.mm flexible |
| Relay Make / Manufacturer | Omron |
| Contact Type | 1 Change Over |
| Packaging Details | In corrugated box with bubblesheet |
Description
- Din Rail Mounting.
- Solderable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.

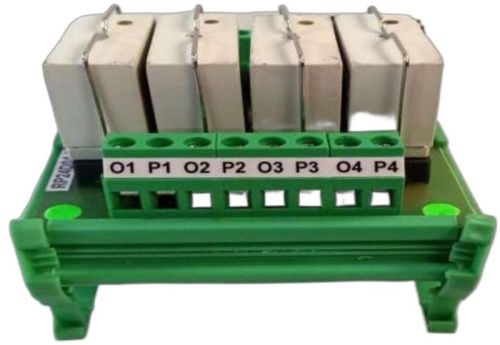

| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Condition | New |
| Application | Industrial |
| Country of Origin | Made In India |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | 10 to 60 degree Celsius |
| Relative Humidity | 5 to 95% RH |
| Relay ON Indication | Green Color Led |
| Relay Protection Method | Freewheeling Diode |
| Designation | Designation Plate Screwed to the Pcb for Labeling Purpose |
| Rating of Contacts | 5 Amp at 0-230 V AC |
| Input Voltage | 4-32 V DC |
| Relay Socket | 5 A, 230 V AC |
| Terminals | Screw Type |
| Conductor Size | 0.25 -2.5 Sq.mm Flexible |
| Relay Make / Manufacturer | Unison |
| Relay Type | USSR 806 PMDD |
| Model Name/Number | RP24D04-1NO-U-B5/P (USSR) |
| Material | PCB- FR4, Glass Epoxy |
| Delivery Time | 1 week |
| Packaging Details | In corrugated box with bubblesheet |
