Nashik, Maharashtra
- GST NO. : 27ABRPB9873C1ZC
Twitter1 Piece (MOQ)
| Business Type | Manufacturer, Exporter |
| Brand Name | Boost |
| Color | Green |
| Design | Standard |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Condition
New
Application
Industrial
Size
55 mm X 90 mm X 66 mm
Certification
CE Certified, ISI Certified
Voltage
24 V DC
Type
Relay Modules
Warranty
1Year
Country of Origin
India
Contact Type
1 Change Over
Relay Type
G2RL-1, Electro-mechanical
Relay Make / Manufacturer
OMRON
Conductor Size
0.25 -2.5 Sq.mm Flexible
Terminals
Screw Type
Mechanical Dimensions
55 mm X 90 mm X 66 mm
Input Current/ Channel
17 mA per channel
Relay Socket
5 A, 250 V AC
Coil Resistance
1,440 Ohms + 10%.
Rating of Contacts
10 A at 24V DC and 250V AC For resistive load
Packaging Details
In corrugated box with bubble sheet
Description
- Din Rail Mounting.
- Pluggable Relay.
- 20,000,000 Mechanical operations minimum.
- 30,000 Electrical operations minimum.

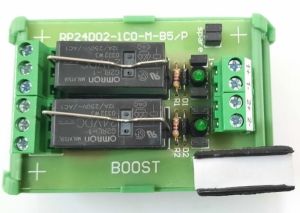

Looking for "Relay Interfacing Module RP24D02-1CO-M-B5/P" ?
